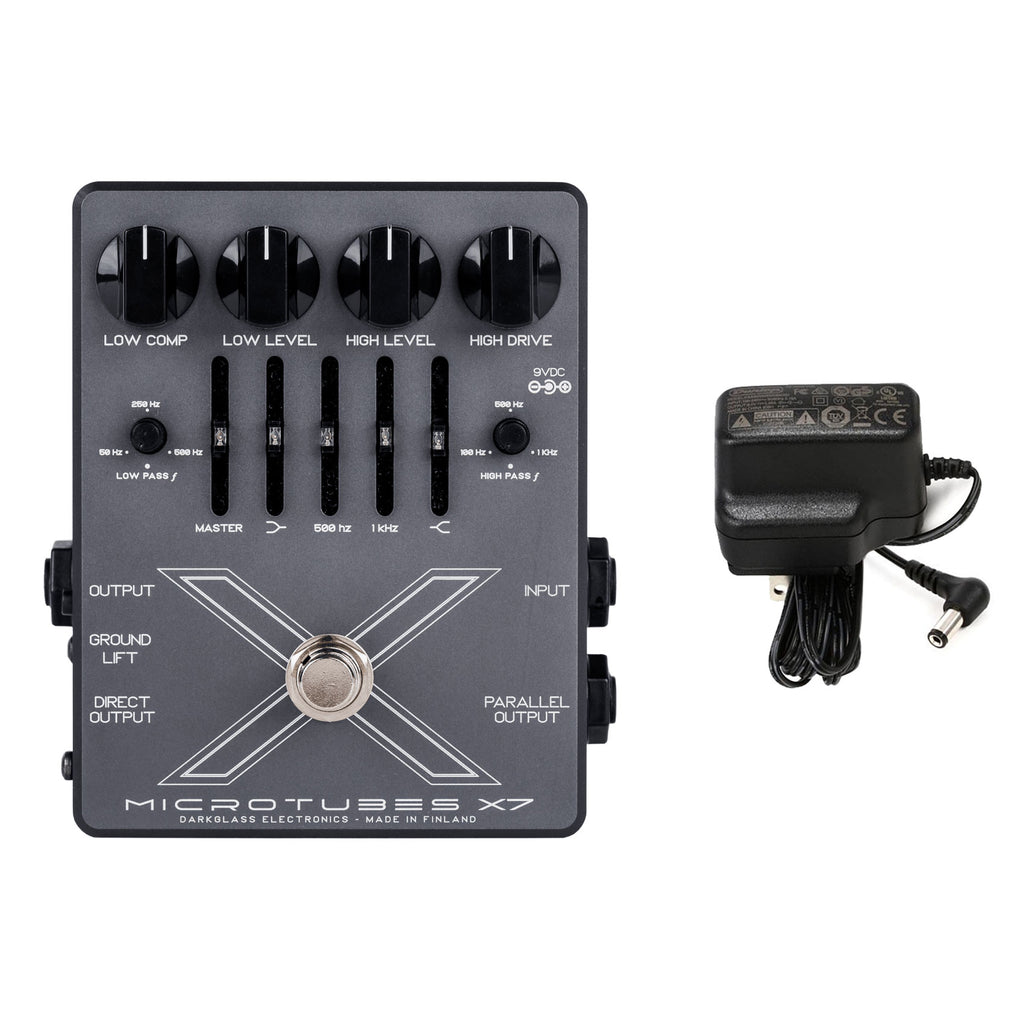

The Darkglass Electronics Microtubes X7 Multiwave Distortion brings you the studio method producers have been using the years to cover the whole bass distortion spectrum: from articulate high gain to punchy mild overdrive, raw and gnarly fuzz and everything in between. You now have absolute control in constructing your vision of what the perfect bass distortion texture, definition, and size should have.
Comes with a FREE compatible power supply!
High Pass Frequency: Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.
High Drive: Sets the amount of distortion for the high pass side.
High Level: Sets the output volume of the distorted high-pass signal.
Low Pass Frequency: Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.
Low Comp: Sets the amount of compression for the low-pass signal.
Low Level: Sets the output volume of the low-pass signal.
Master: Sets the overall volume of the unit
Low Shelf: +-12dB @ 80 Hz
High Shelf: +-12dB @ 5Hz
Parallel Output: A passthrough for your input signal, useful for parallel processing.
Direct Output: A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.
Dimensions: Width 94 mm (3.70 in); Height 120 mm (4.72 in); Depth 46 mm (1.81 in).
Weight: 320 g (0.70 lb)
Power: The Microtubes X7 has a current draw of 70mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Warning: Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com.
