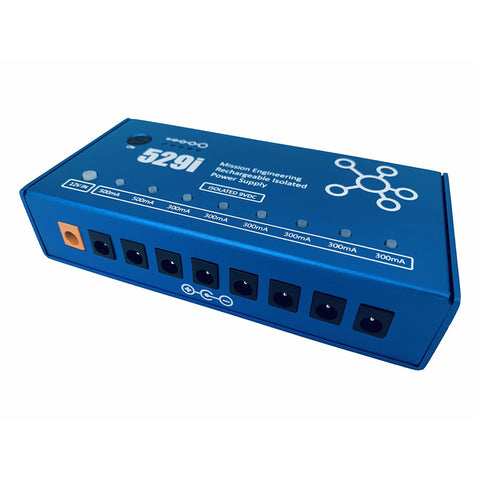

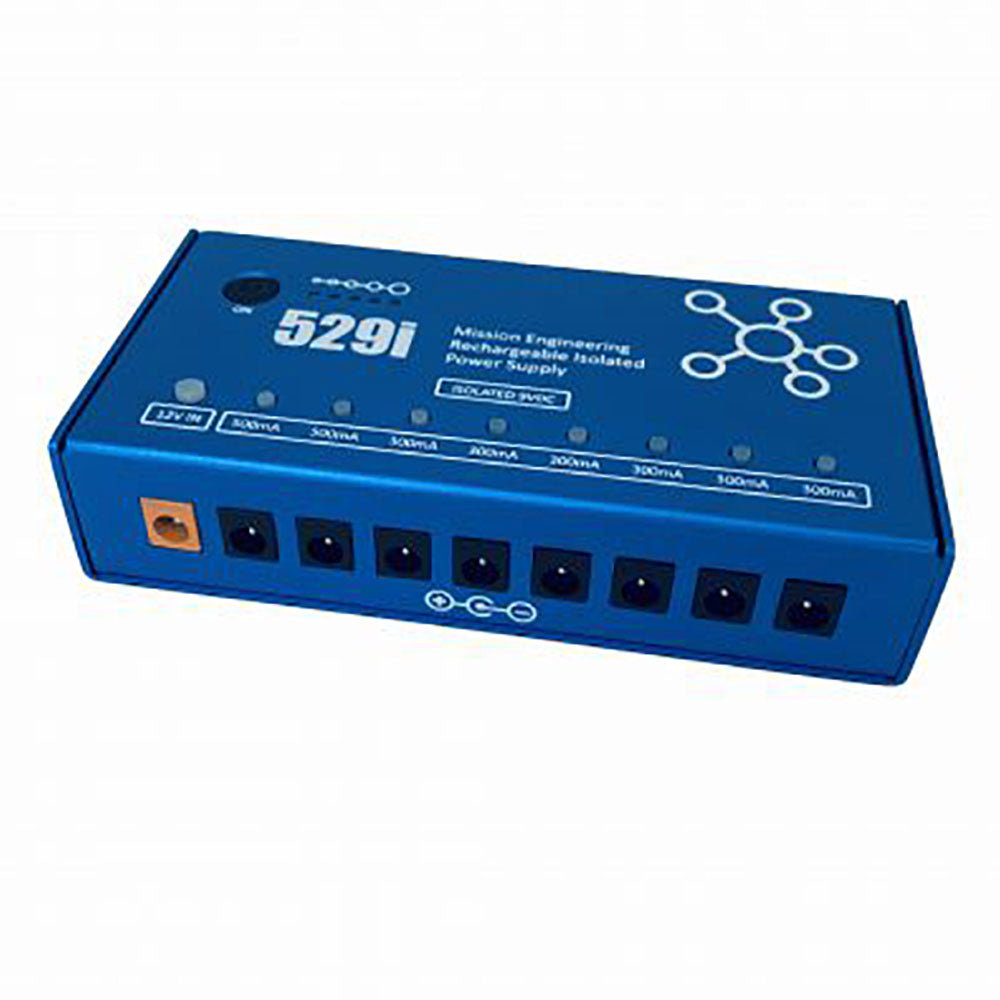

Mission Engineering 529i Rechargeable 8 Output Power Supply

Mission Engineering

Mission Engineering 529i Rechargeable 8 Output Power Supply

$ 169.00

The Mission Engineering 529i Rechargeable 8 Output Power Supply gives you eight isolated 9V pedal board power outputs and a USB charging port from an internal rechargeable battery.

The 529i features 2 x 500mA and 6 x 300mA 9V fully isolated outputs. With a 1A load, the 529i will power your pedalboard for 2 hours on a single charge. Recharge using the included 12V power supply, or from any USB charger.

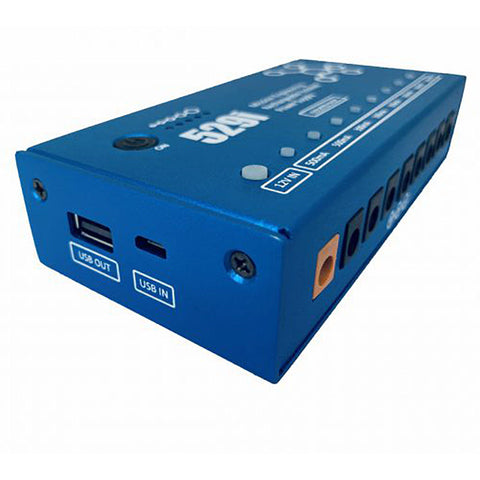

The isolated 5V USB output can be used to charge mobile devices, or for USB powered audio equipment such as wireless receivers for a completely wireless and portable pedalboard.

The included voltage doubler cable allows two outputs to be used in series to power 18V pedals.

All 9V outputs include short circuit and over current protection with red LED fault indication. There is also LED indication of input and output power active, charge state, and a soft touch power on/off switch.

Specifications:

  • Inputs
    • 5V USB 2 Type B micro
    • 12V 2.1mm center pin negative
  • Outputs
    • 2 x 9V 500mA 2.1mm center pin negative
    • 6 x 9V 300mA 2.1mm center pin negative
    • 5V USB Type A
  • Dimensions
    • 5.5″ x 2.75″ x 1.25″
    • 1lb
  • Battery
    • Type: Rechargeable Lithium-Ion
    • Capacity: 8000mA/h
    • Runtime: 2 hours @1000mA continuous load
    • Charge time: 3.5 hours @2000mA
  • Construction
    • Aluminum case
    • Blue anodized


Package includes:

  • 529i power supply with internal battery
  • 12V wall charger
  • 8 x 2.1mm 9V DC cables
  • USB charging cable
  • 18V voltage doubler cable

Note: Due to the value of this item we may require that an adult be present to accept delivery.
